Products >> Residential R.O. System >>
5 Stage water purifier with baynote cartridge
- Product No.：RO-50G-B1

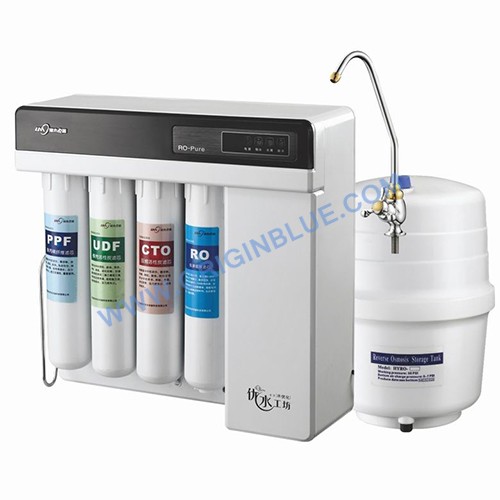

5 Stage water purifier with baynote cartridge
MODEL NO. RO-50G-B1
MODEL NO. RO-50G-B1
20/40/40HQ 337PCS/600PCS/686PCS
DESCRIPTION
Purified water capacity:50GPD(187L)/Day
Purified water capacity:50GPD(187L)/Day
Type of flushing:Auto washing type
Fitting Type:Quick Connector
4 Stage filters:PP+GAC+CTO+RO
50GPD RO membrane(optional CSM,FILMTEC)
Pressure Tank:3.2G steel tank(optional 3.0 plastic tank)
Applicable water pressure: 0.1-0.6MPa
Quick Change filter cartridges
Booster pump:24VDC transformenr 110v/220v-24VDC
Net/gross weight: .14.5/16.5Kgs
Single unit package dimension:66.5x51x49cm/2PCS
GENERAL INTRODUCTION OF REVERSE OSMOSIS WATER SYSTEM
THE FUNCTION OF RO SYSTEM CORE PARTS
First Stage(PP Sediment Filter):To remove sand,silt,dirt and rust particles in water.
Second Stage(Granular Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity.
Third Stage(Block Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity,and suspending particles.
Fourth Stage(RO membrane):It is made of the semi-permeable membrane with the 0.0001 micron filtration precision for separating and removing the bacteria,
heavy metal,salt bad mineral substance and other dissolved matter and chemical drug in the running water.
Fifth Stage(Post Inline Carbon Filter):To absorb the odor,and adjust the taste.
OPTION:SIXTH STAGE
(Mineralized ball or Aluminite):To improve the quality of RO water by the far infrared radiation and releasing essential mineral substance.
(Ultraviolet Sterilizer):It utilizes germicidal ultraviolet light to quickly and reliably disable bacteria,viruses and other micro-organisms present in water.
(Magnetizing Filter):The RO water passes through the magnetic field,breaking the original polymer macromolecules so that they become many single active
small molecules,the alkaline alkalescent small molecules water is healthful for human body.
GENERAL INTRODUCTION OF REVERSE OSMOSIS WATER SYSTEM
THE FUNCTION OF RO SYSTEM CORE PARTS
First Stage(PP Sediment Filter):To remove sand,silt,dirt and rust particles in water.
Second Stage(Granular Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity.
Third Stage(Block Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity,and suspending particles.
Fourth Stage(RO membrane):It is made of the semi-permeable membrane with the 0.0001 micron filtration precision for separating and removing the bacteria,
heavy metal,salt bad mineral substance and other dissolved matter and chemical drug in the running water.
Fifth Stage(Post Inline Carbon Filter):To absorb the odor,and adjust the taste.
OPTION:SIXTH STAGE
(Mineralized ball or Aluminite):To improve the quality of RO water by the far infrared radiation and releasing essential mineral substance.
(Ultraviolet Sterilizer):It utilizes germicidal ultraviolet light to quickly and reliably disable bacteria,viruses and other micro-organisms present in water.
(Magnetizing Filter):The RO water passes through the magnetic field,breaking the original polymer macromolecules so that they become many single active
small molecules,the alkaline alkalescent small molecules water is healthful for human body.
