MBR Hollow Fiber Membrane
- Product No.:OR-18E

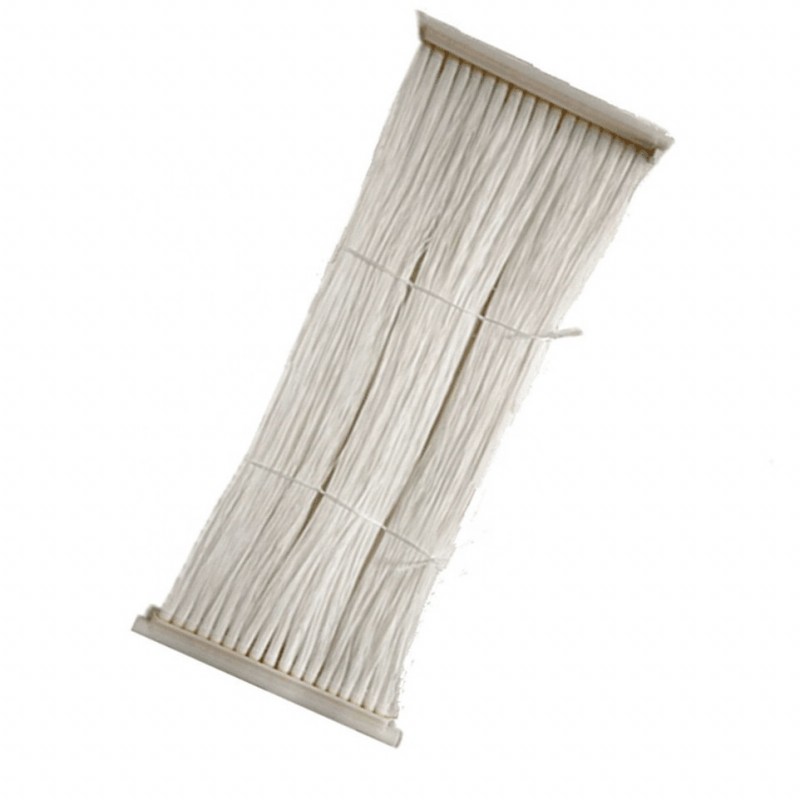

MBR Hollow Fiber Membrane
Introduction
MBR hollow fiber membrane modules from ORIN can be used in treating various industrial
and municipal wastewater of variable water quality. We have the capability to provide professional technical support that includes in-house design consultation, selection of optimal process flow and after sales support to our customers. ORIN is committed to its customers worldwide by providing cost-effective, reliable and sustainable solutions with its innovative and customer-centered MBR systems.
Product features and benefits
• Excellent quality product water
• Low capital cost and compact design
• Ease of maintenance
Application
Broad range of application for the treatment of high BOD and/or suspended
solids containing wastewater from:
1. Municipal sewage treatment
2. Industrial wastewater treatment including chemical waste and food waste
3. Livestock wastewater treatment
4. Landfill leachate treatment
MBR Hollow fiber Membrane Element | |||||
MODEL | OR-20C | OR-7.5D | OR-18E | OR-30E | |
Specification | Membrane Material | PVDF+PET | |||
Operation Mode | Outside-in | ||||
Nominal Pore Size | 0.03um | ||||
Outside Diameter | 2.2mm | ||||
Available Membrane Area(sq.m.) | 20 | 7.8 | 18 | 30 | |
Dimension(mm) | 534*46*1560 | 620*31*1015 | 1250*31*1300 | 1250*31*2000 | |
Encapsulation Material of Bottom | Epoxy resins/polyurethane | ||||
Dry weight | 6kg | 5kg | 12kg | 15kg | |
Wet weight | 12kg | 9kg | 20kg | 30kg | |
Operation Conditions | Filtering Type | Vacuum Suction | |||
Temperature | 5-40℃ | ||||
Long Running pH | 2~20 | ||||
Filtrate Flux | 10~25L/SQ.M*H | ||||
Max TMP | 60KPA | ||||
Backwash Flux | 30~50L/SQ.M*H | ||||
Clean In Place pH | 1~11 | ||||
Max NaCIO Cleaning concentration | 5,000mg/L | ||||
Water Quality | Turbidity of Permeate | ≤0.5NTU | |||
SDI15 of Permeate | ≤3.0 | ||||
Suspended matter | ≤2mg/L |
