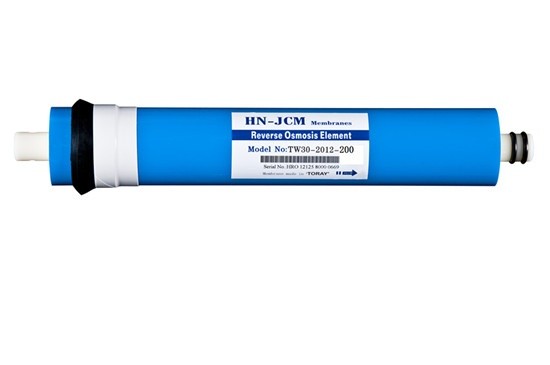

200G RO Membrane

Model		TW30-2812-200

Performance	Stabilized salt rejection(%)	96.0
	Minimum Rejection Rate(%)	96.0
	Permeate flux rate GDP(m3/d)	200.0
	Active Membrane Area ft2(m2)	12（1.13）
Test condition	Testing Pressure	60psi(0.4Mpa)
	Temperature of Testing Solution	25℃
	Concentration of Testing Solution (NaCl)	250ppm
	pH Value of Testing Solution	7.5
	Recovery Rate of Single Membrane Element	0.2
Operating limit	Max. Working Pressure	300psi（21Mpa）
	Max. Feedwater Temperature	45℃
	Max. Feedwater SDI	5.0
	Free Chlorine Concentration of Feedwater	＜0.1ppm
	pH Range of Feedwater during Continuous Operation	3～10
	pH Range of Feedwater during Chemical Cleaning	2～12
