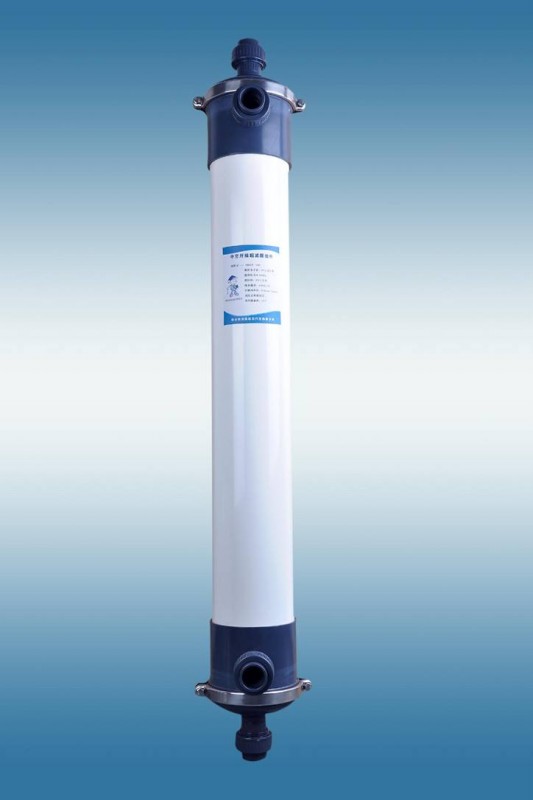

Pressurized UF Membrane Modules
Product name : Pressurized UF Membrane Modules
Product No. : UF-8060
             [Next Product]→
Online Inquiry         Email Us

  Details:
Pressurized UF Membrane Modules

Product features and benefits
• Excellent quality product water
• Low capital cost and compact design
• Ease of maintenance
Application
Broad range of application for the treatment of high BOD and/or suspended
solids containing wastewater from:
1. Municipal sewage treatment
2. Industrial wastewater treatment including chemical waste and food waste
3. Livestock wastewater treatment
4. Landfill leachate treatment
Pressurized UF Membrane Modules
MODEL UF-4040 UF-6060 UF-8060 UF-8080

Specification Membrane Material PVDF
Operation Mode Outside-in
Nominal Pore Size 0.03um
Inside/Outside Diameter 0.7/1.3mm
Available Membrane Area(sq.m.) 8.3 35 55 75
Dimension Ф90*1125 Ф160×1814 mm Ф225*1757 Ф225*2257
Connector Size DN25 DN40 DN50 DN50
Case Material UPVC UPVC UPVC UPVC
Encapsulation Material of Bottom Epoxy resins/polyurethane
Filtering Type Dead end or cross-flow filtration
Turbidity of Permeate <=0.2NTU
SDI15 of Permeate <=2.5
Feed Conditions Turbidity <=300NTU
PH 2~10
Pre-filtration 100~300um
Temperature 1~40 Degree Celsius
Typcial Filtrate Flux 30~120L/sq.m.*H,25 Degree Celsius
Max TMP 0.2Mpa
Backwash Conditions Frequency Every 20-60mins(According to water quality or result of the pilot testing)
Pressure <=0.2Mpa
Flux 80-120L/sq.m.*H
Air Scour Conditions Air Pressure <=0.2Mpa
Air Flow per Module 4-10 Nm3/H
Chemical Enhanced Backwash Frequency Every 12-24H(According to water quality or result of the pilot testing)
Cleaning Solutions 0.1%HCI(More or less duo to water quality)
0.05%NaOH+0.1%NaCIO(More or less duo to water quality)
Clean In Place Frequency When TMP exceeds 0.08-0.1Mpa above starting TMP,and can't recover by Backwash,air scour and Chemical enhanced backwash
Cleaning Solutions 2% Oxalic,1-2% Citric or 0.4%HCI
0.1%NaOH+0.2%NaCIO(Active Chlorine)
